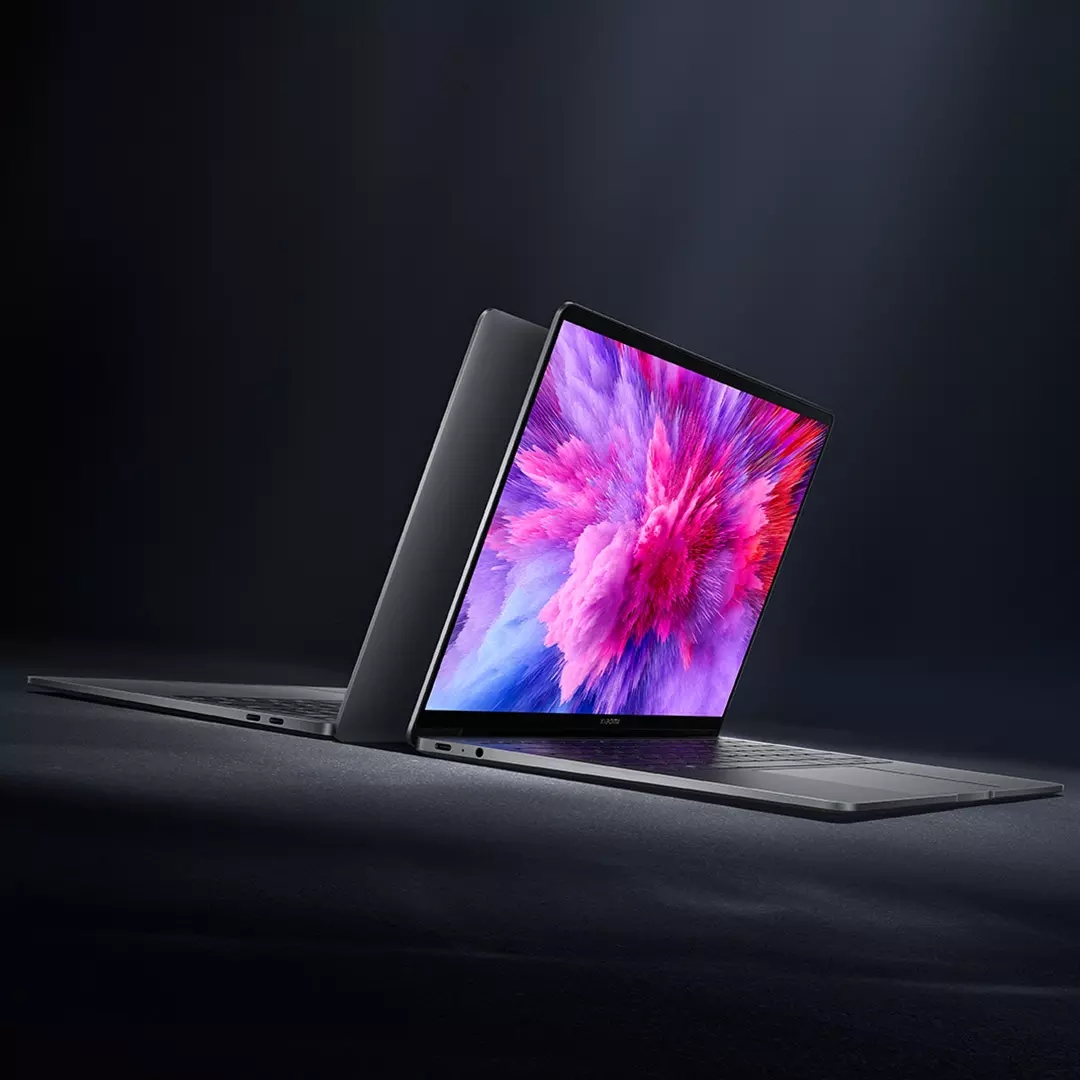

Xiaomi Book Pro 14 Laptop Ryzen 2022 R7-6800H R5-6600H AMD Radeon 680M/660M Graphics 16G+512G 14 inch 2.8K 90Hz OLED Notebooks

Operating System

Windows 10 (You can Free upgrade to windows 11 by yourself)/Windows 11

Product Configuration

AMD Ryzen™7 6800H
AMD Radeon™ 680M Integrated Graphics

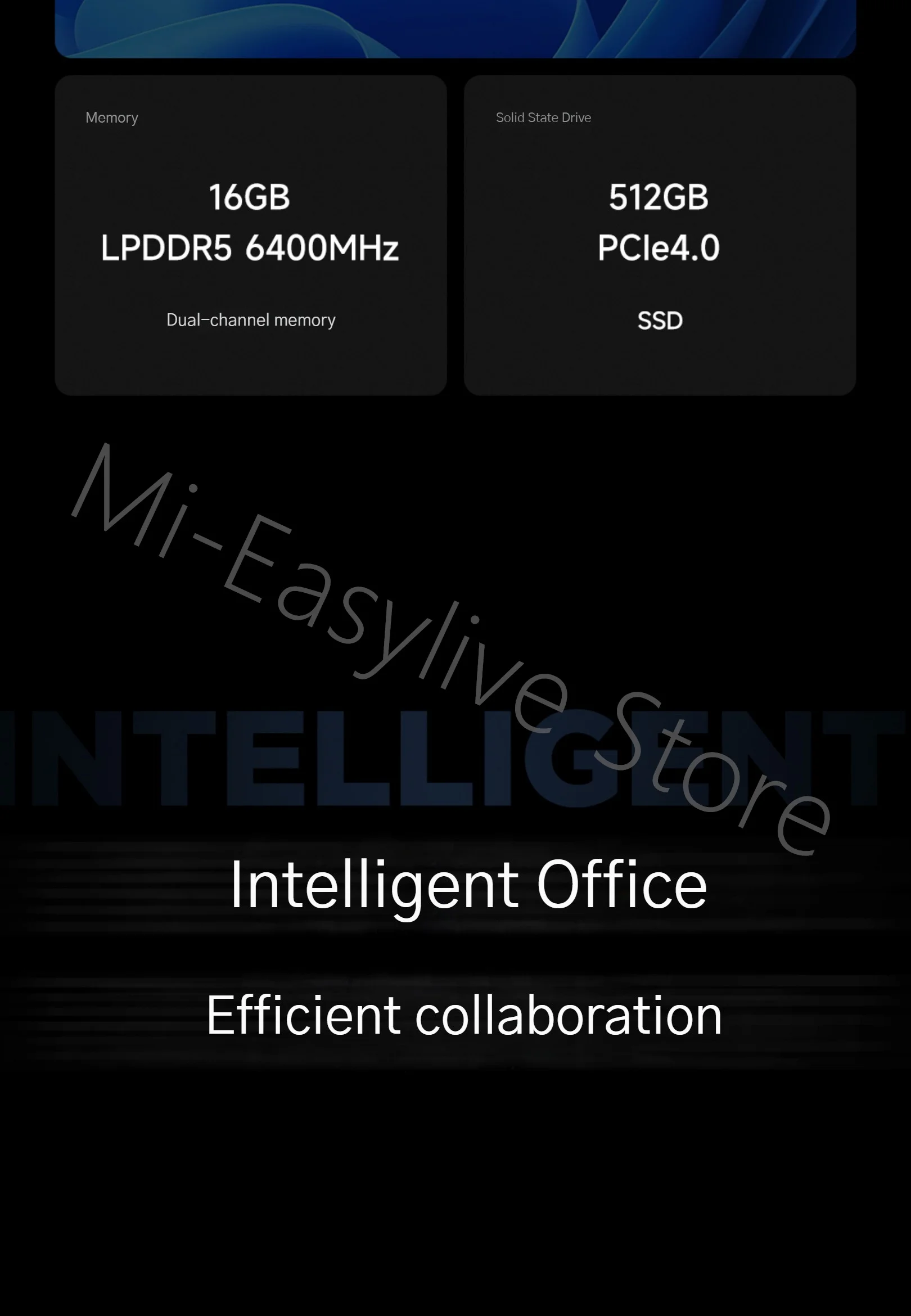

16GB LPDDR5 6400MHz Dual Channel
512GB PCIe 4.0 high-speed storage
Lunar Ash

AMD Ryzen™5 6600H
AMD Radeon™ 660M Integrated Graphics
16GB LPDDR5 6400MHz Dual Channel
512GB PCIe 4.0 high-speed storage
Lunar Ash

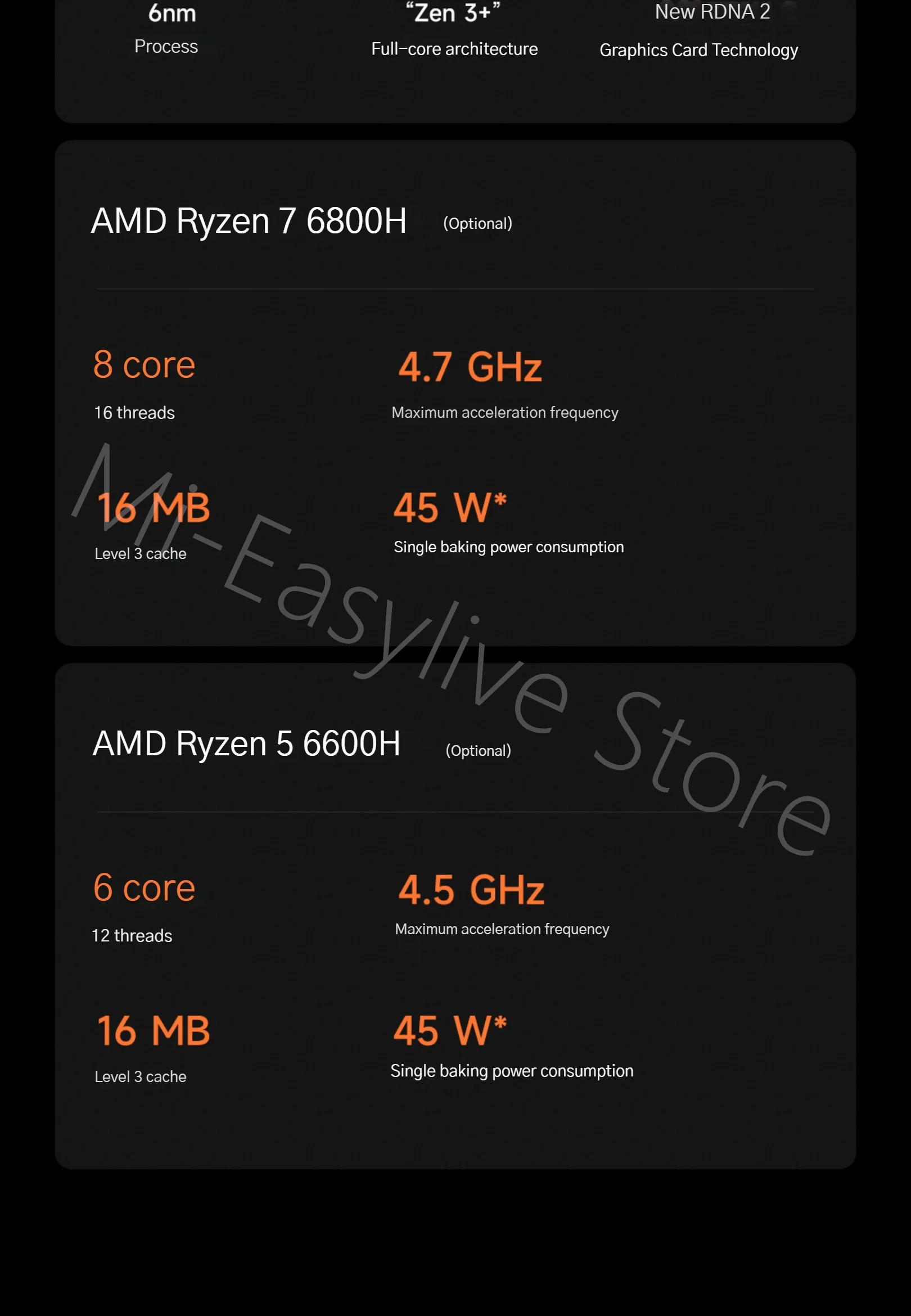

Processor

AMD Ryzen™ 7 6800H
Reference frequency 3.2GHz
Maximum acceleration frequency 4.7GHz
8 core 16 thread processor
L3 cache 16MB

AMD Ryzen™ 5 6600H
Reference frequency 3.3GHz
Maximum acceleration frequency 4.5GHz
6 core 12 thread processor
L3 cache 16MB

Graphics card and video output

AMD Radeon™ 680M /AMD Radeon™ 660M
Full-featured USB-C interface x2, supports video output (DP 1.4)
Support wireless projection

Network

2×2 MIMO dual antenna
Support 802.11ax(Wi-Fi6) network protocol
Support 2.4GHz, 5GHz dual frequency
Compatible with 802.11 a/b/g/n/ac
Supports Bluetooth 5.2 wireless technology

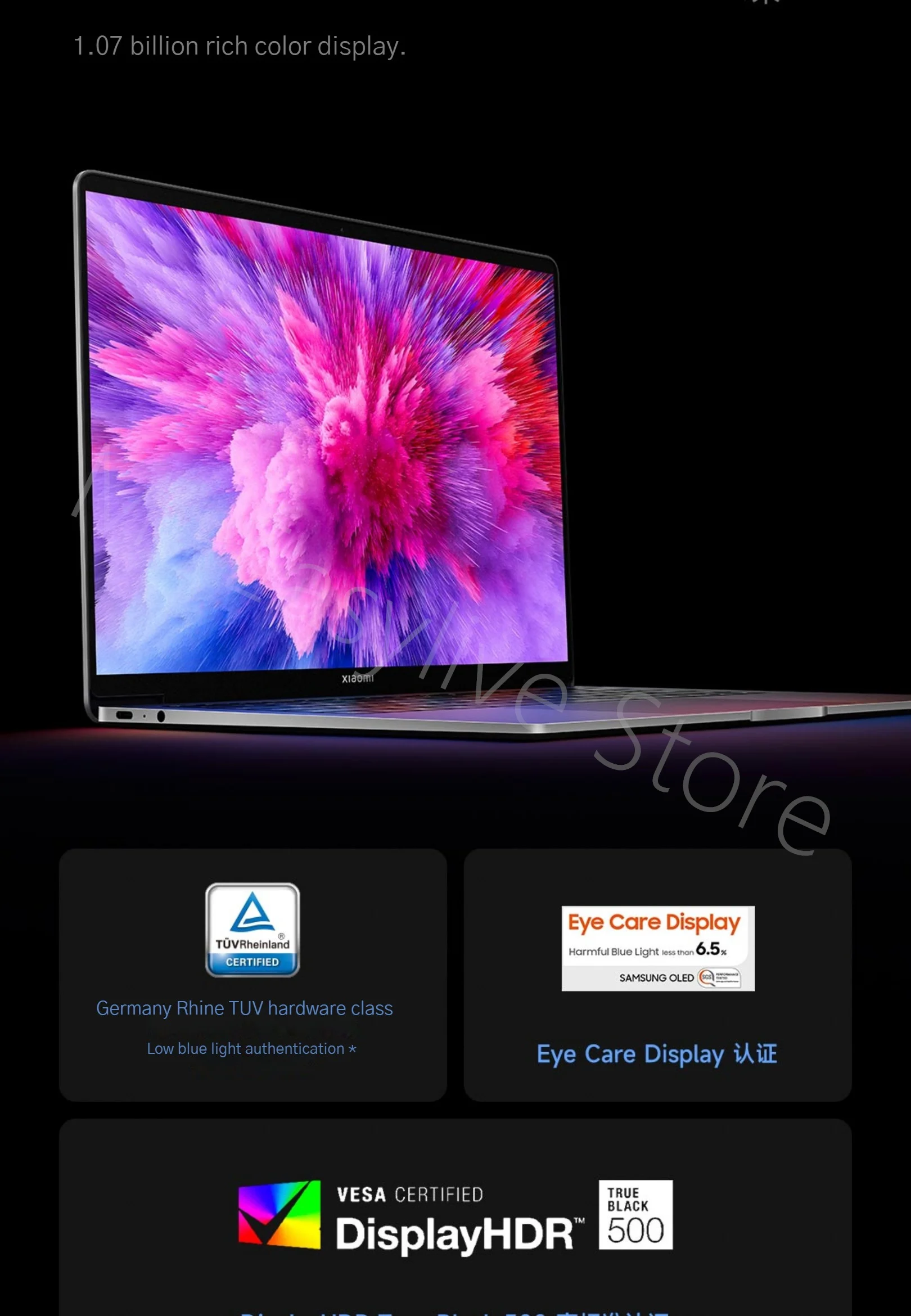

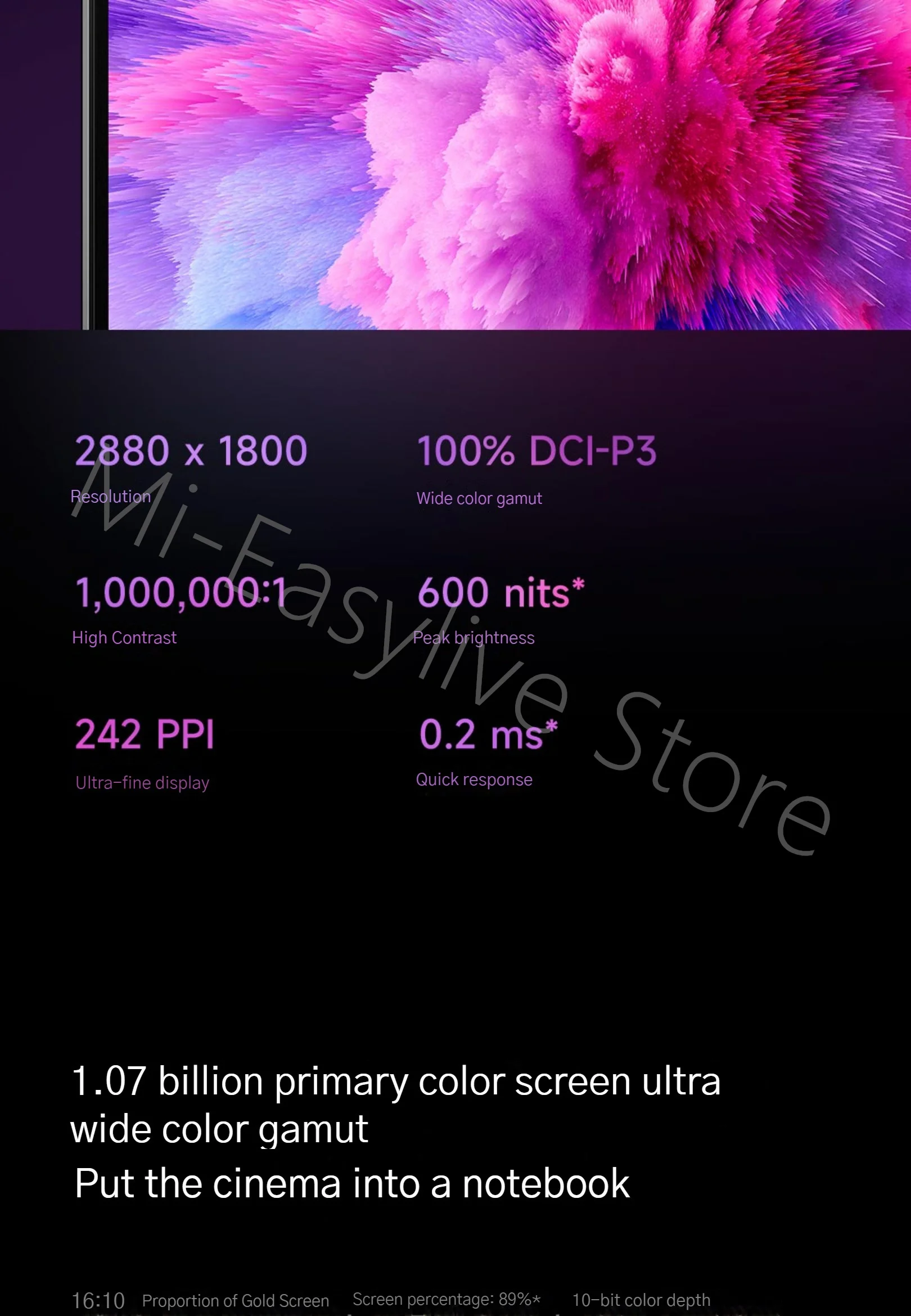

Display

14" OLED Super Retina Display
2880 x 1800 resolution
242PPI, 3.35mm narrow bezel*, 89.92% screen-to-body ratio*
16:10 display ratio, 170° wide viewing angle,
60Hz / 90Hz (support Fn+S refresh rate quick switch)
600nits peak brightness, 1000000:1 contrast ratio,
100% DCI-P3 / Delta E < 1* / AID dimming,
Passed the TÜV Rheinland hardware-level anti-blue light certification

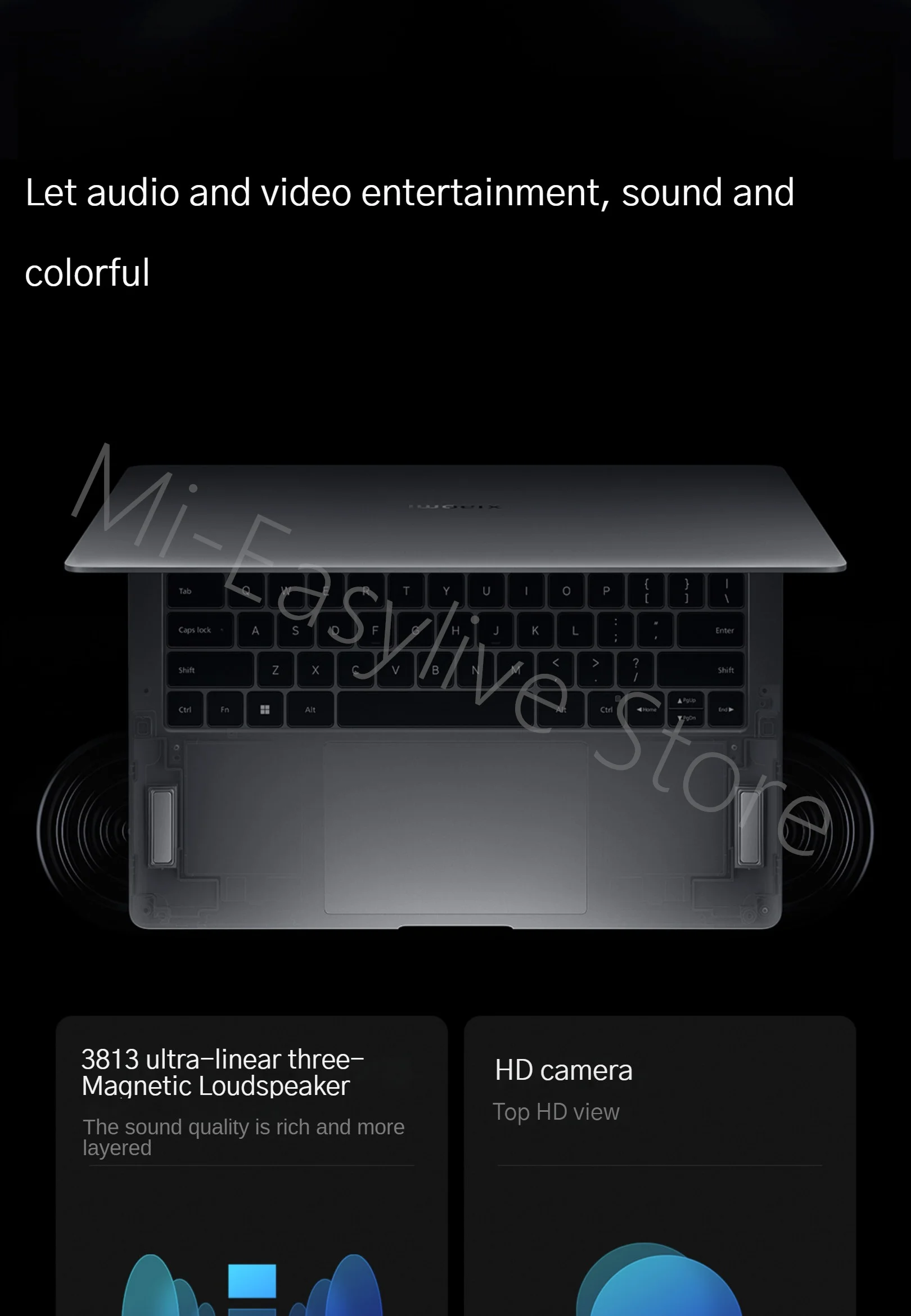

Audio

Speaker: 2*2W
Sound system: DTS Audio Processing

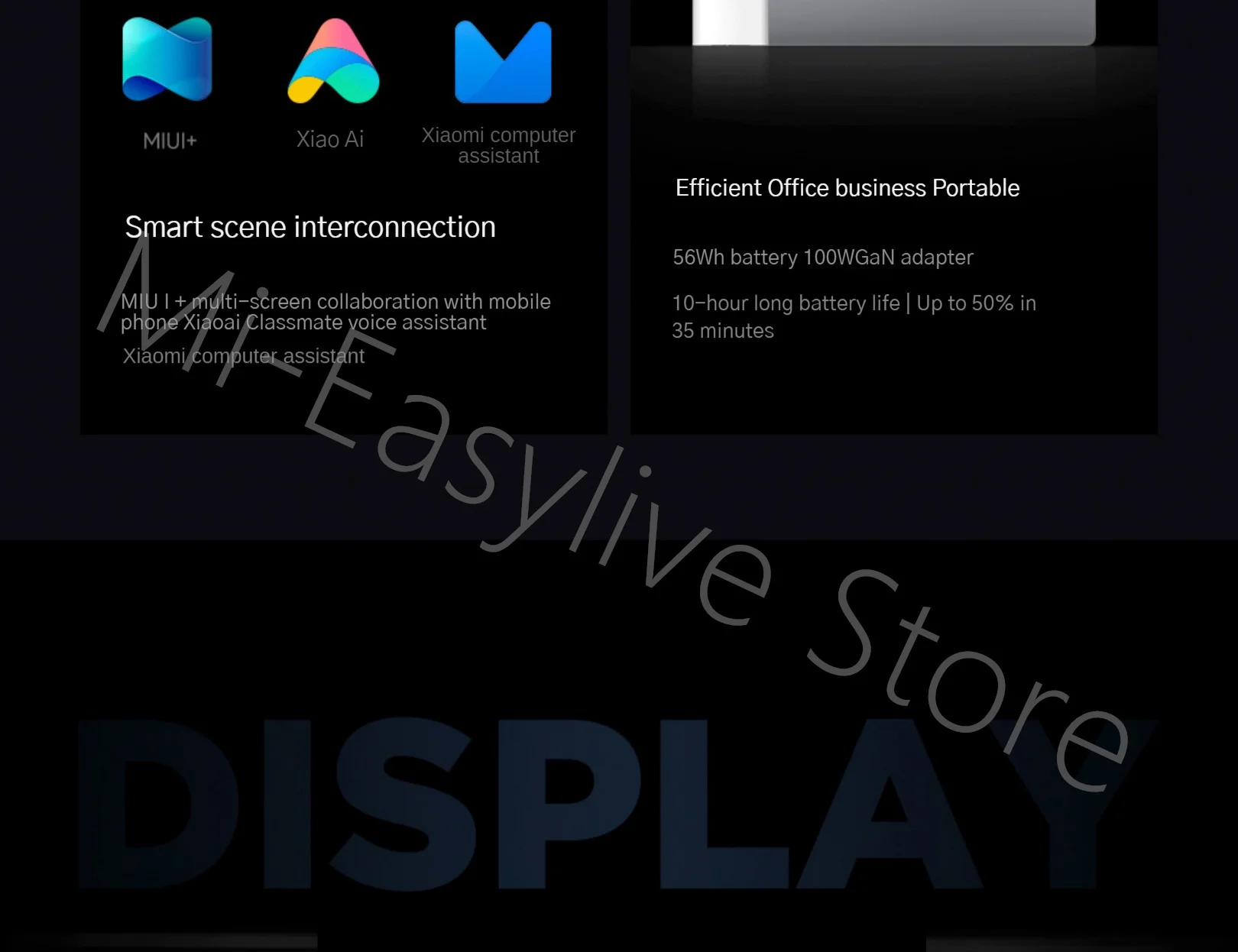

Battery power

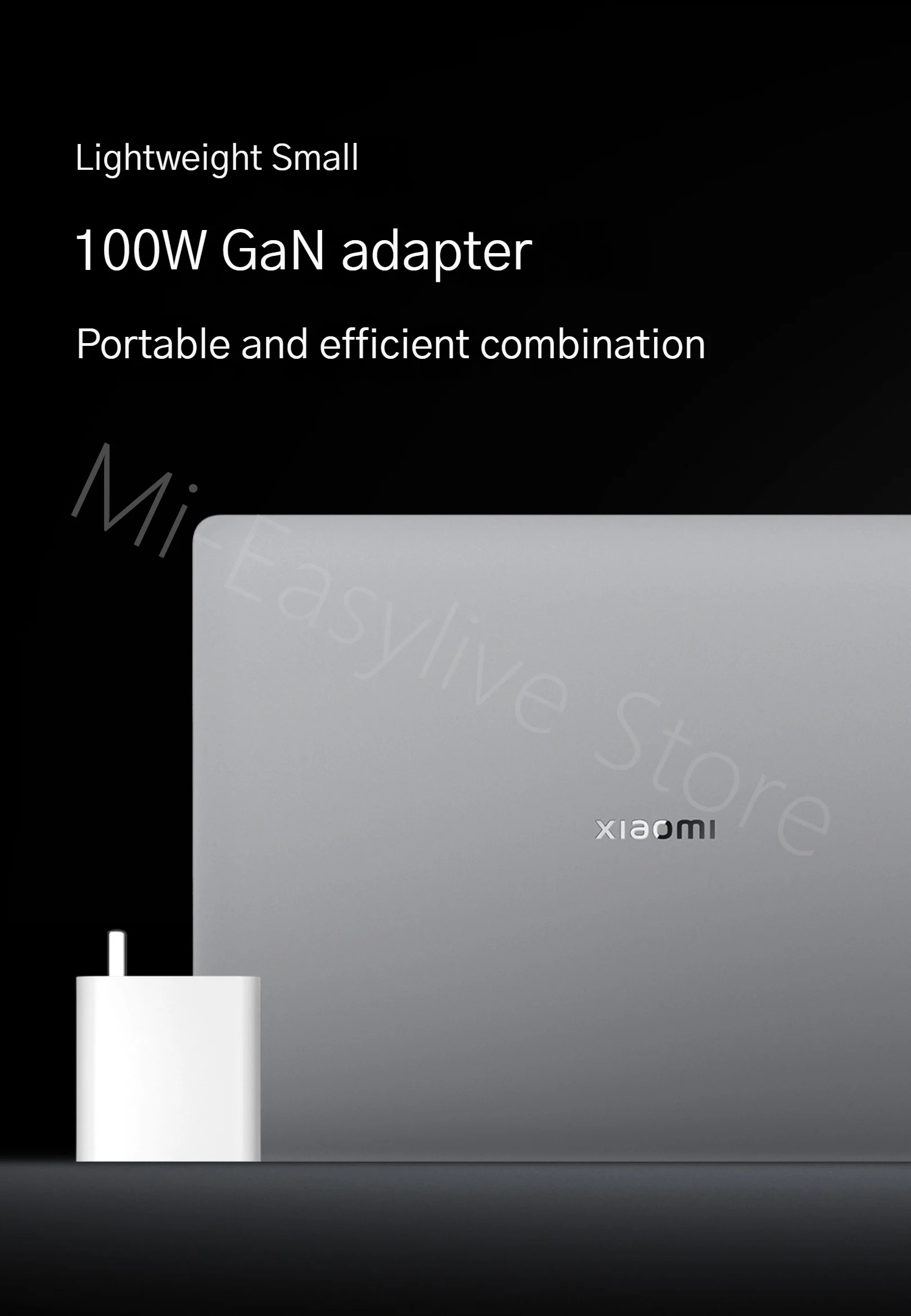

56Wh (nominal) battery capacity, 100W GaN power adapter,
The notebook is turned off and not connected to any additional devices, and the ambient temperature is 25 degrees Celsius.
Using the original 100W adapter to charge the notebook, it takes 35 minutes to fully charge to 50%
Up to 10 hours of local 1080p video playback under test conditions of 150nits screen brightness, 50% volume, keyboard backlight off, and no WiFi connection*

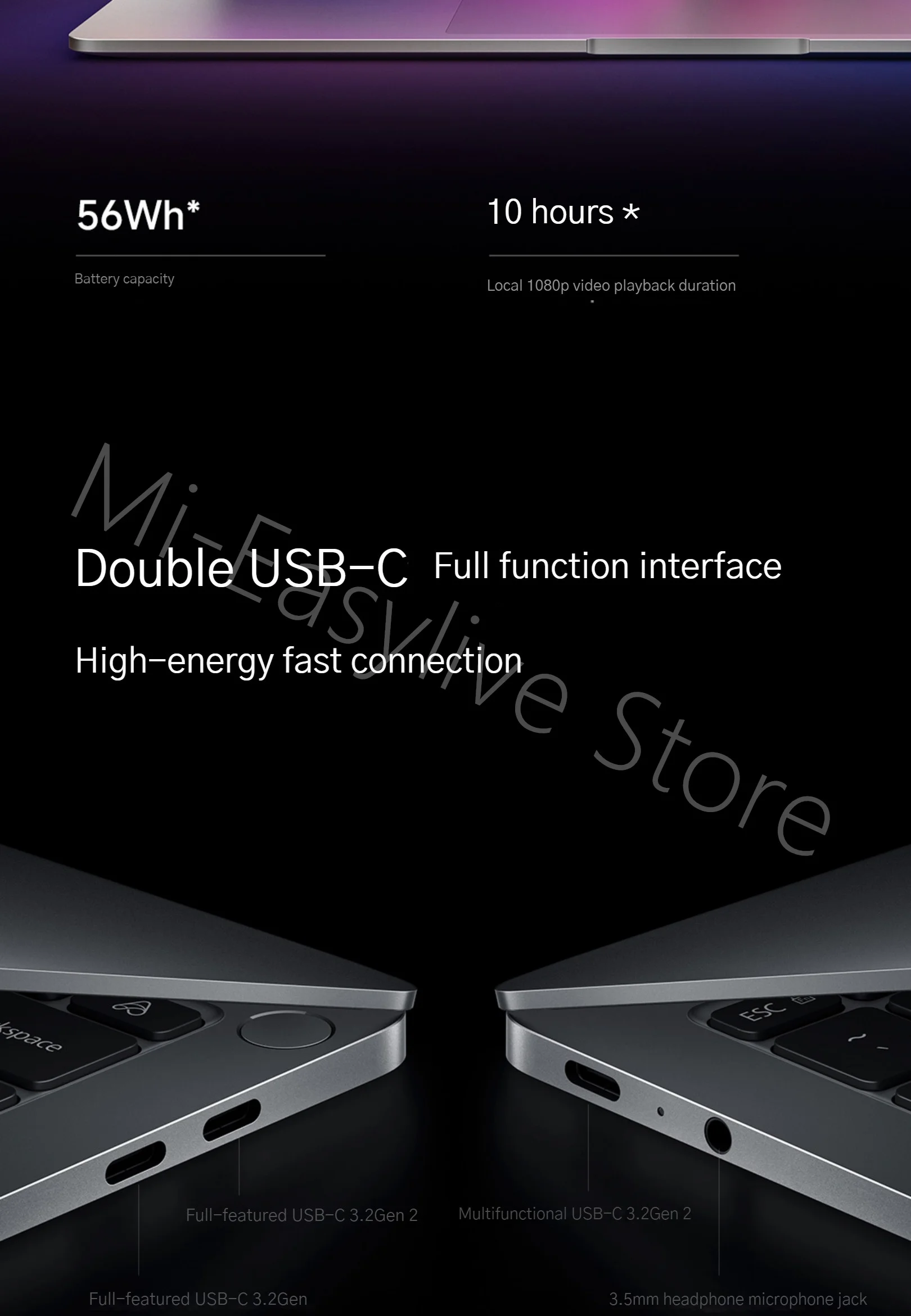

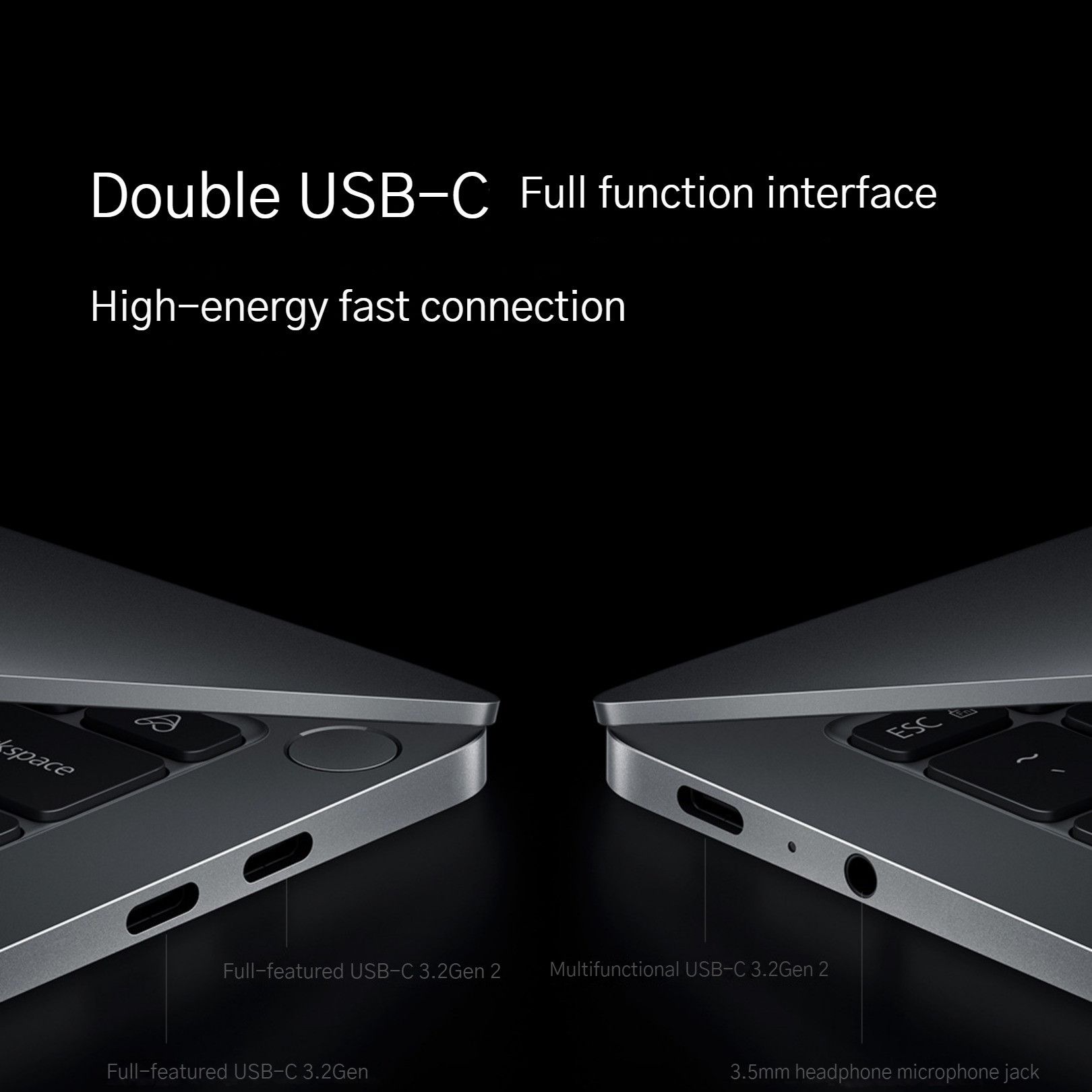

Peripheral interface

Multifunction x 1(USB3.2 Gen2+PD)
Full function x 1 (USB3.2 Gen2+PD+DP1.4)
Full function x 1 (USB3.2 Gen2+PD+DP1.4)
3.5mm headphone microphone jack x 1

Size and weight

313.83mm * 219.42mm * thin to about 14.9mm * light to about 1.4kg (including battery, the specific weight is based on the product delivery configuration)
The A/C side is fully CNC machined, and the D side is stamped, 140° ± 5° (theoretical design value, plus or minus 5° in the actual measurement is within a reasonable range)

Cameras and Input Devices

720p camera
Fingerprint power button
Support automatic screen brightness and keyboard automatic brightness adjustment

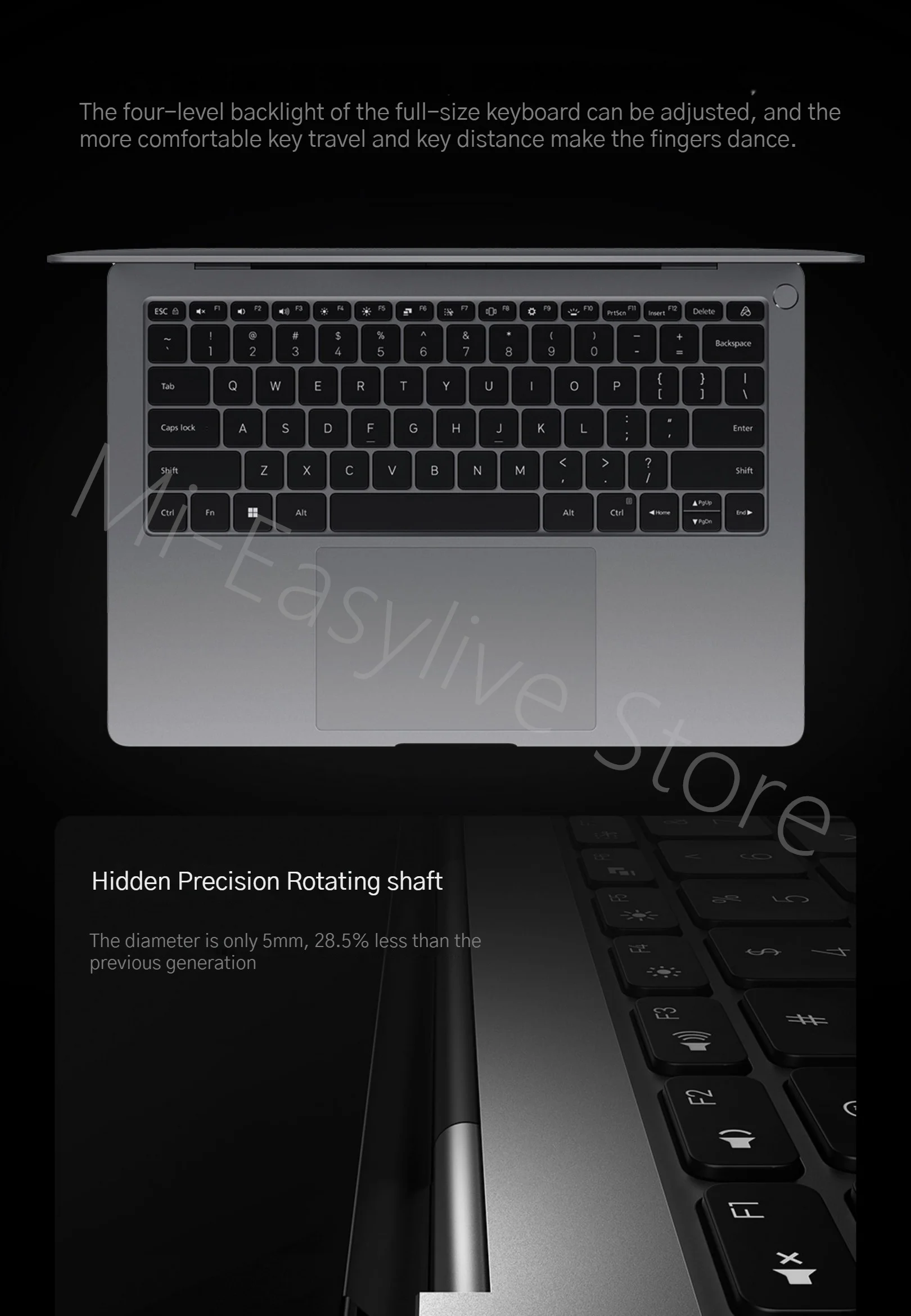

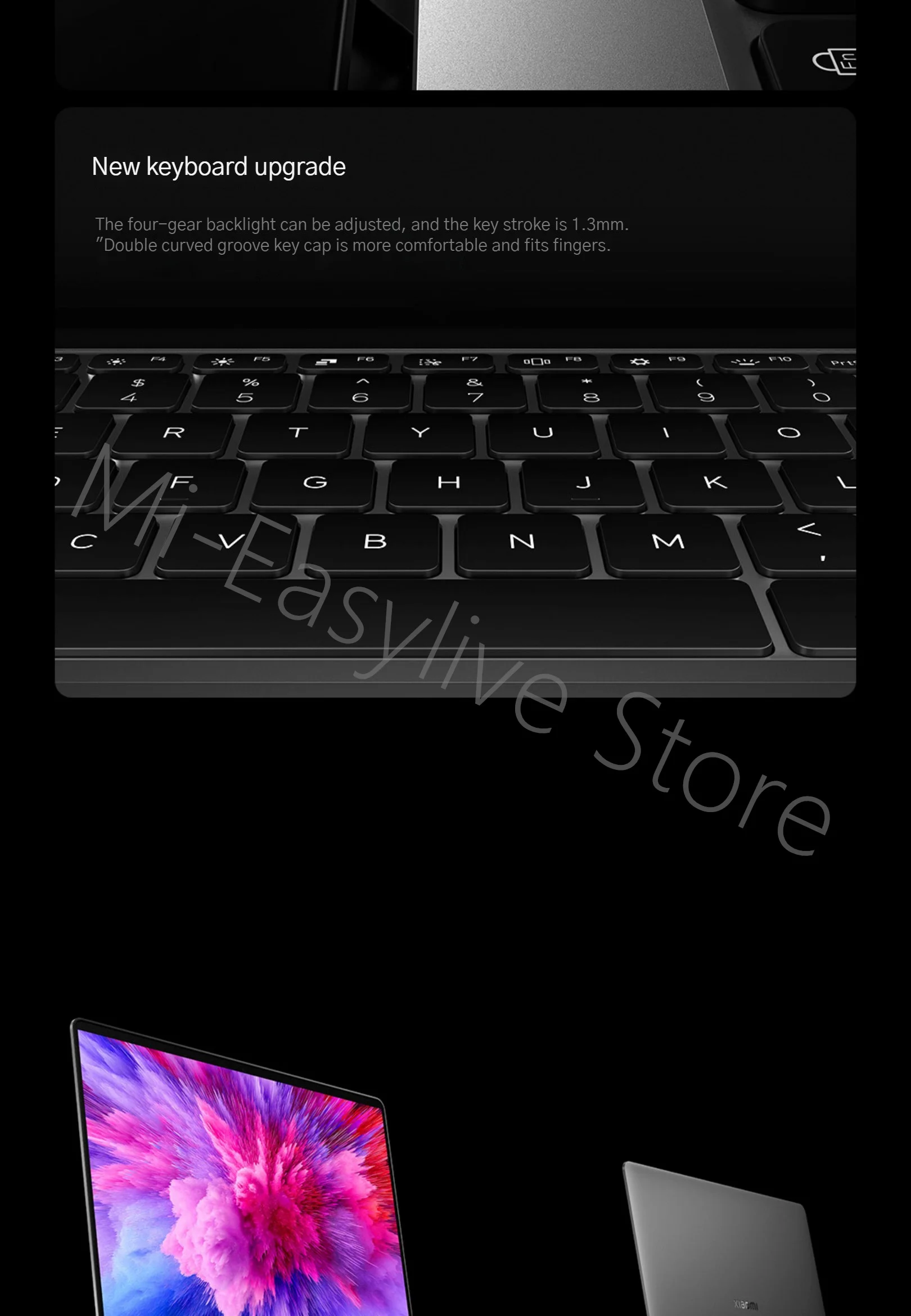

Full-size four-level backlit keyboard with 1.3mm key travel
Mylar touchpad supports Microsoft PTP clickpad technology, which can realize precise cursor control and multi-finger gesture control functions, such as full screen scrolling, program switching, screen zooming and other gestures

Software

Windows 11 Home Chinese Edition/Windows 10 English/Russian/Spanish/Japanese etc language / Office Home and Student Edition, DTS Audio Processing, AMD Radeon Software,

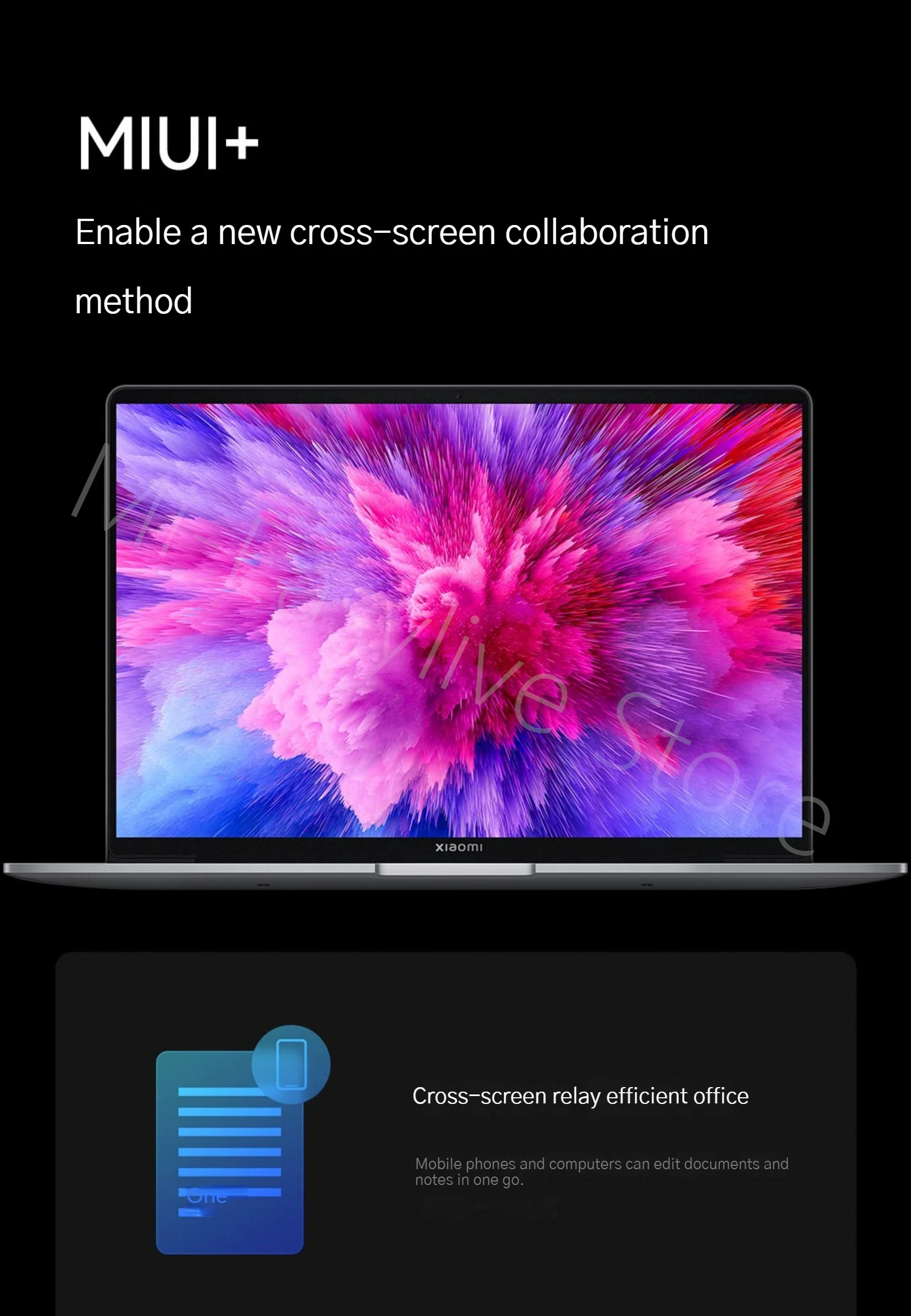

Xiao Ai(support Chinese), MIUI+, Xiaomi Computer Assistant, Xiaomi Cloud Service, Getting Started

Outer packaging specifications

420 x 75 x 307mm
Laptop host x 1
100W GaN Power Adapter x 1
USB-C fast charging cable x 1
Getting Started Guide (Three Pack of Vouchers Chinese language ) x 1
OTG data cable x 1
Screen cleaning flannel x 1

Commen tips:

1. Global Version, default English.
The original keyboard and touchpad language system of the notebook computer is originally Windows 11 Home Edition, Chinese language. Before shipment, we will modify the operating language for you to the English version ( What we have installed for you is the genuine global version of windows11/windows10 system,need open the box ,please know that ).
*The laptop is a high-value product.after you receive the laptop to activate the system, we do not support returns if it is not a quality problem of laptop itself. Please understand
If there are special language changes, you can contact our Customer service in advance,such as Spanish .Russian.

2. The original laptop has an English keyboard layout. We can give you keyboard stickers from different countries, but the keyboard layout cannot be modified,hope you can understand.

3. The laptop has multiple parameter configurations. Please read the corresponding configuration parameters carefully before placing an order. Due to the wrong configuration selection due to personal reasons, we will not accept any form of return or refund
I wish you a happy shopping, if you have any questions, you can consult our customer service, we are very happy to serve you!

4 . It is originally US Plug. We will add a free EU / UK / AU plug converter into package.

The memory capacity and transmission speed of the USB interface on this page are all theoretical values. The data such as size, thickness, weight, and screen opening and closing angle are all design theoretical values, and there are reasonable errors in the actual measurement. The product site is not specifically pointed out, all of which are experiments by Xiaomi

room data. Due to real-time changes such as software upgrades, in actual use, the version, interface, name and other information of the pre-installed software on the notebook may be slightly different with the product batch, please refer to the actual use situation.

* The frame width data is from Xiaomi Lab, 3.35mm is the data that does not include the outermost metal and rubber ring

* The screen ratio data is from Xiaomi Lab, and the screen ratio is the area of the inner frame of the black frame of the screen divided by the total area including the outer frame (excluding the buffer rubber ring and A shell)

* As thin as about 14.9mm, the data comes from the Xiaomi laboratory, and the measurement method is the thickness data from the back side of the bottom front foot pad to the surface A

* Delta E < 1, the data comes from Xiaomi Lab, the data is the typical value of the average color level measured under the maximum brightness of the screen (such as: power on, the screen is in a stable state, and functions that affect brightness such as automatic brightness adjustment are turned off).

* The screen brightness is 150nits, the volume is 50%, the keyboard backlight is turned off, the adapter is not connected, and the WiFi test condition is not connected, the local 1080p video playback can be up to 10 hours

* It can be charged up to about 50% in 35 minutes. It means that when it is turned off and the ambient temperature is 25 degrees Celsius, the original 100W adapter is used to charge the notebook, and the maximum charge can be up to 50% in 35 minutes. Actual battery life and charging time may vary due to different laptop configurations and specific conditions of use
